onAir Panel Min IP

onAir Panel Min IP

Chauvet Professional

#1739
Short Name: onairpanelminip

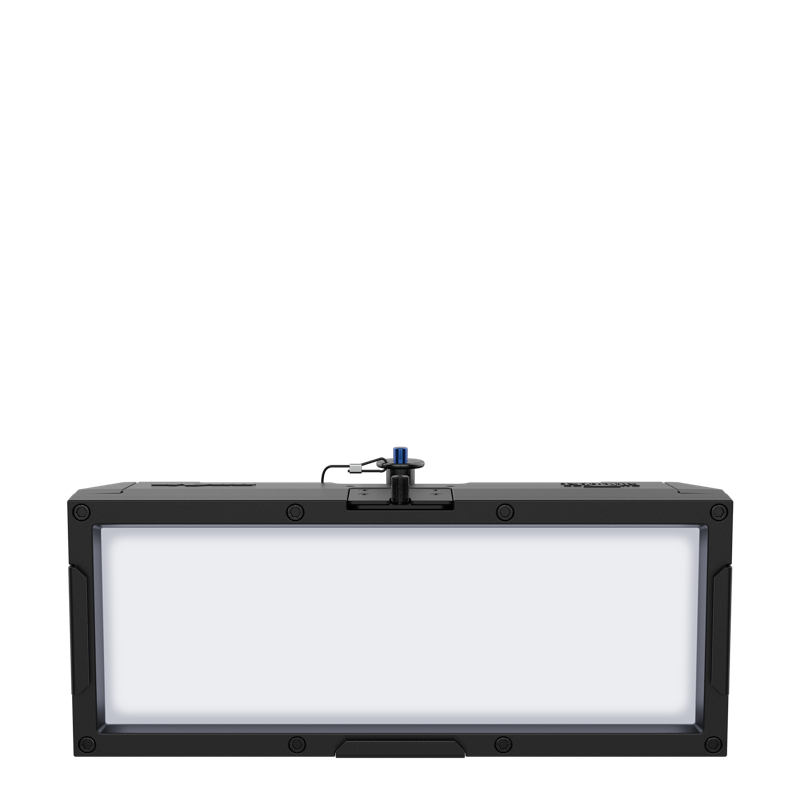

“onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.”

Physical

Weight2 kg
Length105 mm
Width254 mm
Height109 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.57 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | SeetronicPowerkonIP65

Optical & Wheels

SourceSoftlight / Panel
Emitters3200K | 2800K | 4000K
Lumens2,573 lm
CRI95
Zoom Min94.9°
Zoom Max94.9°
Color Wheels---
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1ch1 ch
3ch3 ch
4ch4 ch
5ch5 ch
6ch6 ch
8ch8 ch
10ch10 ch
11ch11 ch
15ch15 ch
