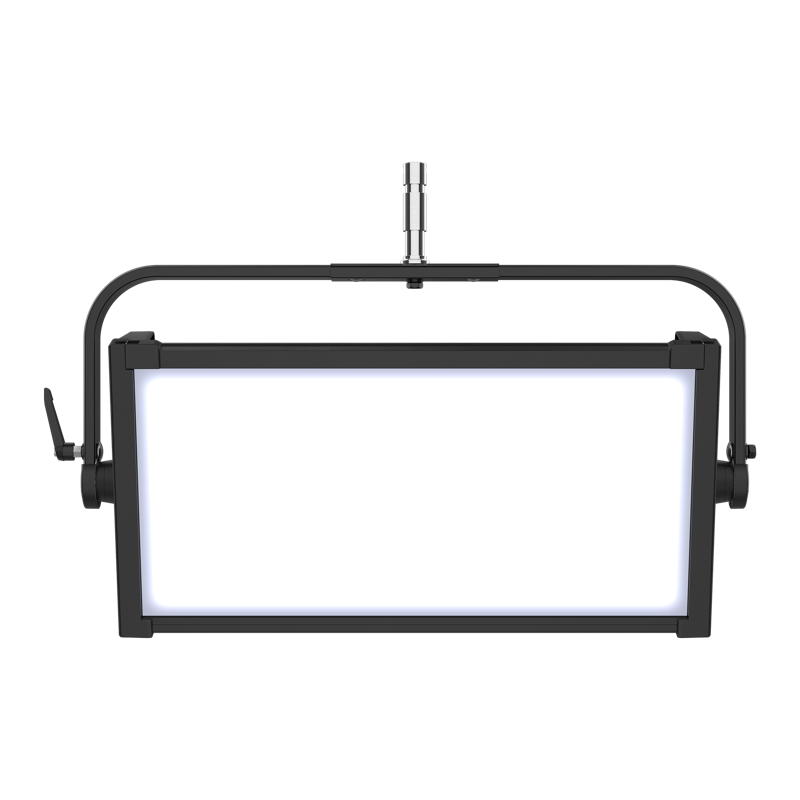

onAir Panel 2 IP

onAir Panel 2 IP

Chauvet Professional

#1738
Short Name: onAirpanel2ip

“onAir Panel 2 IP is a rugged IP65, full-spectrum LED soft light with a 1×2 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 2 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.”

Physical

Weight17.1 kg
Length139 mm
Width849 mm
Height553 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.370 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorXLR5 | XLR3 | RJ45 | SeetronicPowerkonIP65

Optical & Wheels

SourceSoftlight / Panel
EmittersRed | Green | Blue | White | Full On
Lumens22,508 lm
CRI95
Zoom Min100.2°
Zoom Max100.2°
Color Wheels---
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

1ch1 ch
3ch3 ch
4ch4 ch
5ch5 ch
6ch6 ch
8ch8 ch
11ch11 ch
15ch15 ch
16ch16 ch
18ch18 ch
23ch23 ch
32ch32 ch
