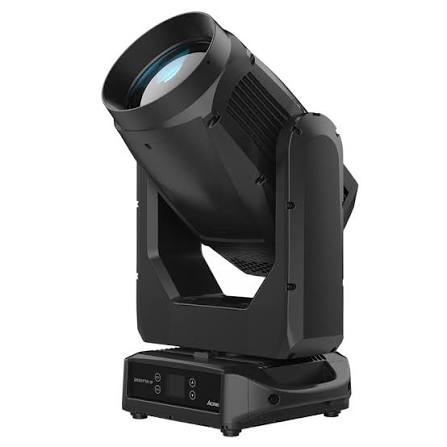

Sagitta IP (XP 400 BEAM IP)
ACME
#172Short Name: SAGITTAIP
“IP66 outdoor moving beam light using a PHILIPS MSD Platinum 18R LL discharge lamp, sharp 2deg fixed beam angle, 170mm frontal lens, 14-color wheel, static gobo + FX wheel, dual combinable prisms, frost and 2 diffuser filters.”
Physical
Weight24 kg
Length410 mm
Width330 mm
Height650 mm
IP RatingIP66
Temp Low-10°C
Temp High40°C
Electrical
Power Consump.570 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR3, XLR5
Optical & Wheels
SourceBeam
EmittersColor Wheel Only (14 colors + open)
Lumens9,900 lm
CRI78
Zoom Min2°
Zoom Max2°
Color Wheels1 [14 colors, plus open]
Gobo Wheels1 [1 static (10 gobos + 3 effect gobos, plus open), 1 FX wheel (3 effect gobos, plus open)]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard14 ch
Extended19 ch
