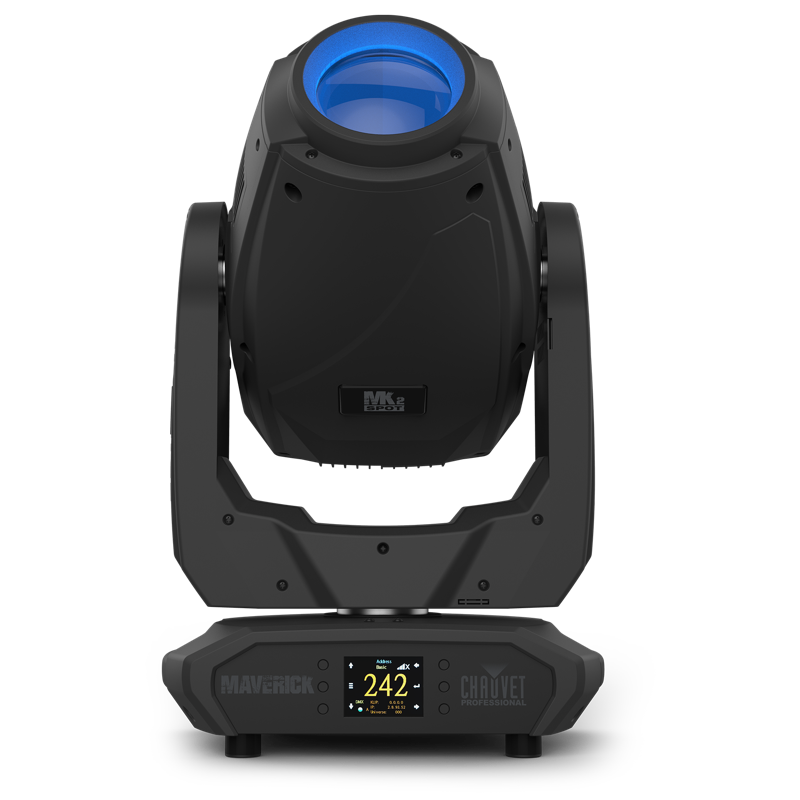

Maverick MK2 Spot

Maverick MK2 Spot

Chauvet Professional

#1712
Short Name: maverickmk2Spot

“Maverick MK2 Spot sets new standards in moving head LED spots. Powered by an industry leading 440W LED engine, this fixture boasts a CMY+CTO color mixing system, two 6 position rotating slot and lock gobo wheels, a 7 position + white color wheel, variable frost and 3 facet prism. All of this projected through a 13° to 37° zoom system. With the ability to control the Maverick MK2 Spot over DMX, Art-Net, sACN, or by WDMX, there is an option for every situation. As an added feature, this fixture can receive Art-Net in, and send out DMX simplifying cable runs. Features: - Fully featured 440W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, zoom optics, and two rotating gobo wheels - 16-bit dimming of master dimmer for smooth control of fades - Variable CMY+CTO color mixing system to create a wide pallet of colors - Two rotating, indexing and interchangeable slot and lock gobo wheels - DMX , WDMX, sACN, and Art-Net for full flexibility of control options - Converts TCP/IP Protocol to DMX for shorter data cable runs - 13° to 37° zoom angle for variable beam sizes - Iris, 3-facet prism, and frost for beam control - True 1 compatible power input”

Physical

Weight28.5 kg
Length385 mm
Width250 mm
Height671 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.700 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorSeetronic Powerkon IP65 | 3- and 5-pin XLR | Neutrik

Optical & Wheels

SourceSpot
EmittersWhite
Lumens18,506 lm
CRI70
Zoom Min13°
Zoom Max37°
Color Wheels2 [8 | 2]
Gobo Wheels2 [7 | 7]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

24 Channel24 ch
32 Channel32 ch
