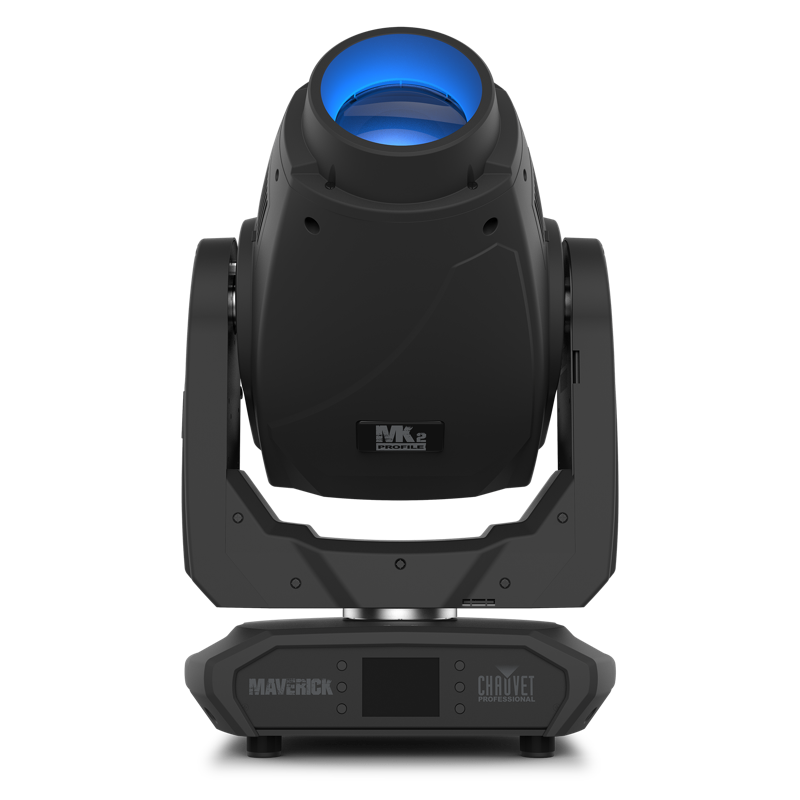

Maverick MK2 Profile

Maverick MK2 Profile

Chauvet Professional

#1711
Short Name: MaverickMK2Prof

“Maverick MK2 Profile delivers ultimate artistic precision via its advanced 4-blade dual position rotating framing system, a stunningly bright 440 W LED engine, two 6-position rotating slot and lock gobo wheels, CMY + CTO color mixing, a 7-position + white color wheel, variable frost, 3-facet prism, and a 13° to 37° zoom range. Take control with DMX, sACN, Art-Net, or W-DMX, and test with RDM. Features: - Fully featured 440 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, 3:1 zoom, and two rotating gobo wheels - 16-bit dimming of master dimmer for smooth control of fades - Variable CMY+CTO color mixing system to create a wide pallet of colors - Two rotating, indexing and interchangeable slot and lock gobo wheels - DMX , WDMX, sACN, and Art-Net for full flexibility of control options - Converts TCP/IP to DMX for shorter data cable runs - RDM control over DMX for fixture reporting - 14° to 36° zoom angle for variable beam sizes - Iris, 3-facet prism, and frost for beam control - True 1 compatible power input - Battery backup display with auto rotate depending on fixture orientation”

Physical

Weight31.7 kg
Length394 mm
Width279 mm
Height671 mm
IP RatingIP20
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.734 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorSeetronic Powerkon IP65 | 3- and 5-pin XLR | RJ45

Optical & Wheels

SourceProfile
EmittersWhite
Lumens11,519 lm
CRI70
Zoom Min13°
Zoom Max38°
Color Wheels2 [8 | 2]
Gobo Wheels2 [7 | 7]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

33 Channel33 ch
50 Channel50 ch
