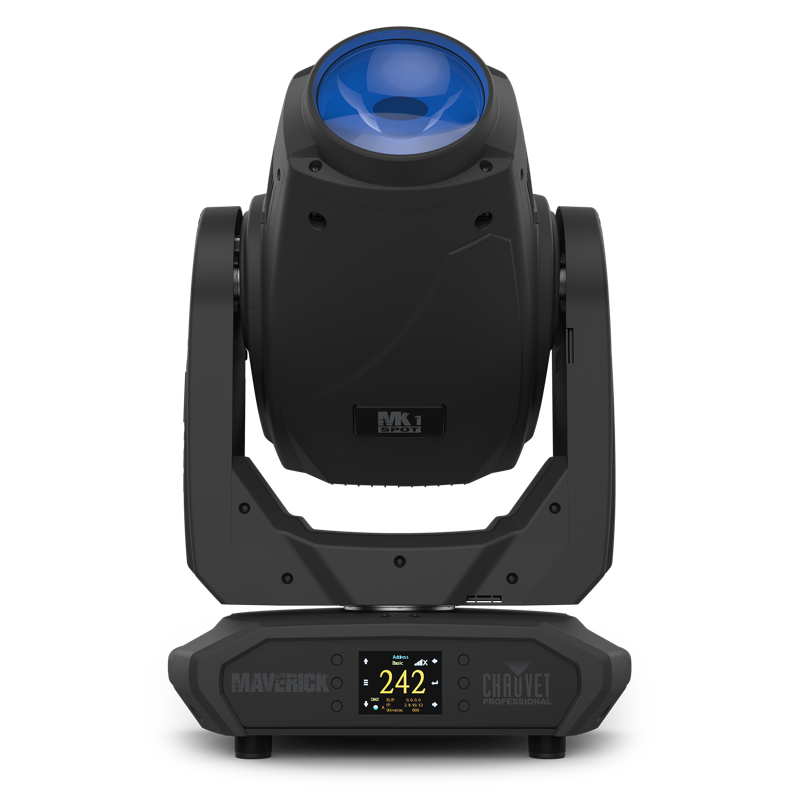

Maverick MK1 Spot

Maverick MK1 Spot

Chauvet Professional

#1710
Short Name: MaverickMK1Spot

“Maverick MK1 Spot is ready for action with an extremely flat field, CMY color mixing, a 5:1 zoom and multiple control options. Powered by a 350 W LED engine, it features one static and one rotating gobo wheel, a 7 position + white color wheel, variable frost and 3-facet prism. It can be controlled with DMX, sACN, Art-Net, or WDMX, and can receive Art-Net or sACN in and send DMX out, simplifying cable runs. Features: - Fully featured 350W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static - 16-bit dimming of master dimmer for smooth control of fades - Variable CMY color mixing system to create a wide pallet of colors - DMX, WDMX, sACN, and Art-Net for full flexibility of control options - RDM Enabled for remote addressing and trouble shooting - Converts TCP/IP to DMX for shorter data cable runs - 7° to 33° zoom angle for variable beam sizes - Iris, 3-facet prism, and frost for beam control - True 1 compatible power input - Battery backup touchscreen display with auto rotate depending on fixture orientation”

Physical

Weight27.2 kg
Length394 mm
Width250 mm
Height636 mm
IP RatingIP20
Temp Low-30°C
Temp High45°C

Electrical

Power Consump.536 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorSeetronic Powerkon IP65 | 3- and 5-pin XLR | RJ45

Optical & Wheels

SourceSpot
EmittersWhite
Lumens9,436 lm
CRI70
Zoom Min7°
Zoom Max33°
Color Wheels2 [9 | 2]
Gobo Wheels2 [8 | 8]

Movement

Pan Range540°
Tilt Range270°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

22 Channel22 ch
29 Channel29 ch
