COLORado PXL Bar 8

COLORado PXL Bar 8

Chauvet Professional

#1675
Short Name: Colpxlbar8

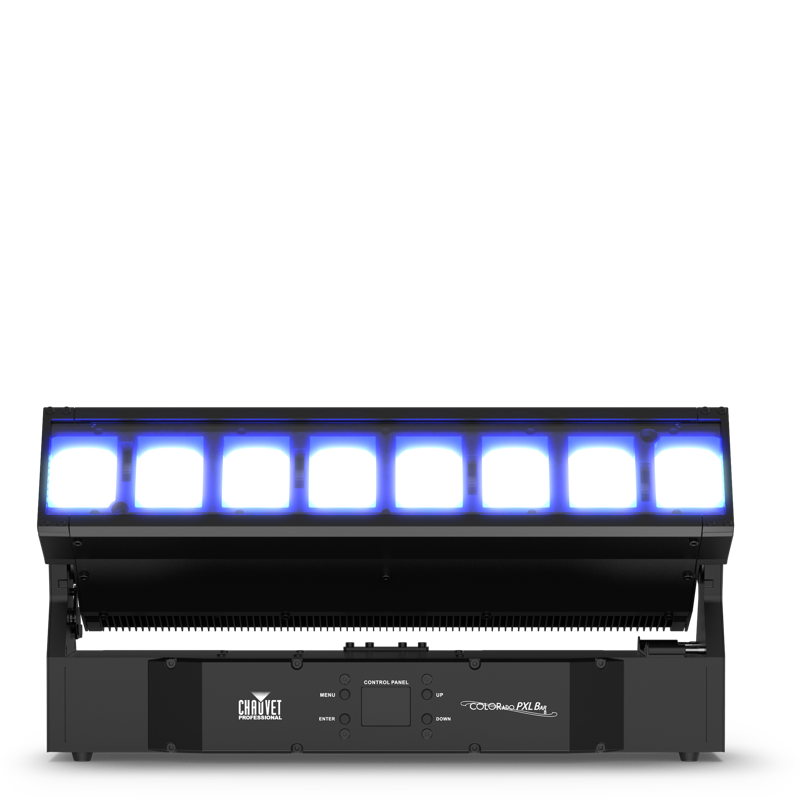

“COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!”

Physical

Weight11.5 kg
Length500 mm
Width139 mm
Height273 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C

Electrical

Power Consump.407 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorSeetronic Powerkon IP65 | 5-pin IP65 XLR | Seetronic RJ45

Optical & Wheels

SourceBar / Batten
EmittersRed | Green | Blue | White | All on white
Lumens3,503 lm
CRI80
Zoom Min3.6°
Zoom Max47.3°
Color Wheels1 [17]
Gobo Wheels---

Movement

Pan Range---
Tilt Range200°

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

Single 19CH19 ch
Single 51CH51 ch
Single 89CH89 ch
Single 105CH105 ch
