COLORado PXL Bar 16
Chauvet Professional
#1674Short Name: COLPXLB16

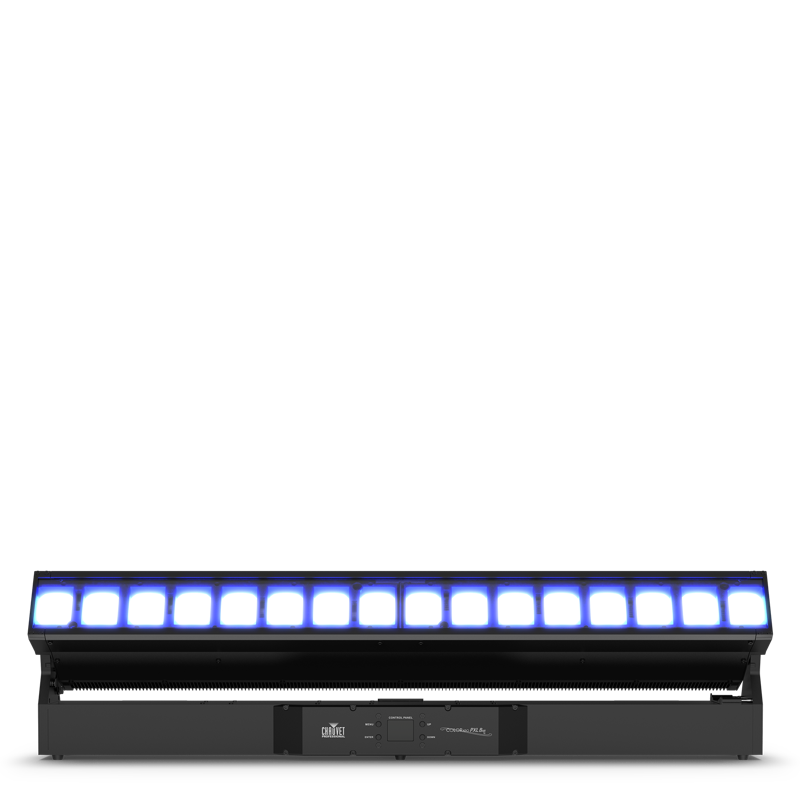

“COLORado PXL Bar 16 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks.”
Physical
Weight20.7 kg
Length1000 mm
Width139 mm
Height273 mm
IP RatingIP65
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.768 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorSeetronic Powerkon IP65 | 5-pin IP65 XLR | Seetronic RJ45
Optical & Wheels
SourceBar / Batten
Emitters---
Lumens8,959 lm
CRI80
Zoom Min5.8°
Zoom Max47.9°
Color Wheels2 [19 | 19]
Gobo Wheels1 [1]
Movement
Pan Range---
Tilt Range200°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Single 19CH19 ch
Single 51CH51 ch
Single 89CH89 ch
Single 105CH105 ch
Single 141CH141 ch
