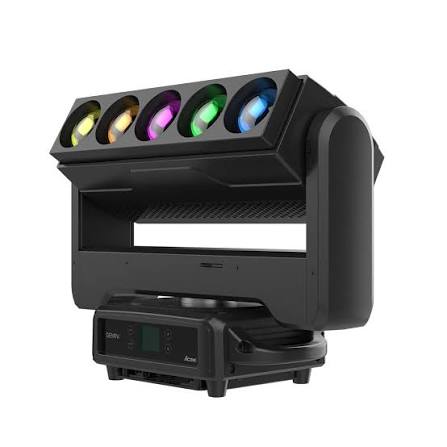

Royaldot (BAR 560)
ACME
#166Short Name: ROYALDOT
“ACME ROYALDOT (BAR 560)”
Physical
Weight18 kg
Length500 mm
Width130 mm
Height388 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.1200 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW (5x 60W RGBW LED + Pixel Zoom Tilt Bar)
Lumens12,000 lm
CRI---
Zoom Min2.8°
Zoom Max46°
Color Wheels1 [34]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
23 Channel23 ch
25 Channel25 ch
27 Channel27 ch
55 Channel55 ch
70 Channel70 ch
