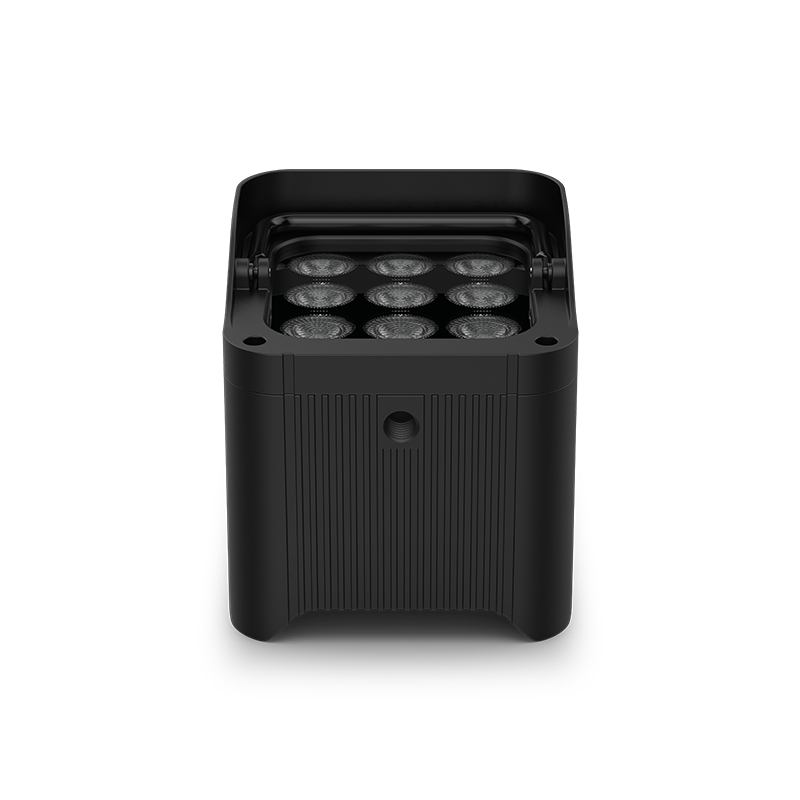

Freedom Par Q9

Freedom Par Q9

Chauvet DJ

#1631
Short Name: Q9

“Battery powered Par fixture with 9 x 6W Quad-colour RGBA LEDs. Includes D-Fi. Notes: 1. The sound mode runs it's own program and is not reliant on other settings (apart from dimmer). You can adjust the sensitivity. 2. Auto programs take priority over colour macros 3. The foreground (FG) and background (BG) colours operate in auto programs 5-9. These programs alternate between the two colors you set. You can change the intensity the two colours separately. 4. I've tested it with the fixture. However, in grandMA3 3D view, the fixture shows a white light as soon as the dimmer is turned on - light should only show when one of the RGBA emitters is turned on. Haven't found a fix as yet.”

Physical

Weight2.1 kg
Length120 mm
Width120 mm
Height126 mm
IP RatingIP20
Temp Low0°C
Temp High40°C

Electrical

Power Consump.31 W
Voltage100V - 240V
Frequency50Hz - 60Hz
Connector---

Optical & Wheels

SourceStatic Wash (Battery Uplight)
EmittersRed | Green | Blue | Amber | All on white
Lumens1,161 lm
CRI100
Zoom Min12°
Zoom Max12°
Color Wheels3 [9 | 16 | 20]
Gobo Wheels---

Movement

Pan Range---
Tilt Range---

Capabilities

PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel

DMX Modes

14ch (14 ch)14 ch
4ch (4 ch)4 ch
6ch (6 ch)6 ch
