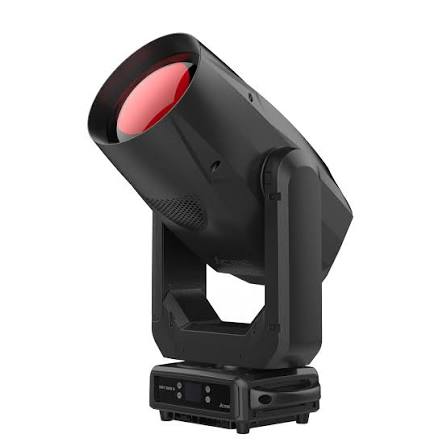

Ray 500 (BEAM 500)
ACME
#163Short Name: RAY500
“ACME RAY 500(BEAM 500)500W”
Physical
Weight28 kg
Length410 mm
Width330 mm
Height690 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.685 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceBeam
EmittersColor Wheel Only (14 colors + open)
Lumens15,000 lm
CRI75
Zoom Min1.8°
Zoom Max1.8°
Color Wheels1 [10 | 2 | 2]
Gobo Wheels2 [11 | 8]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard14 ch
Extended18 ch
