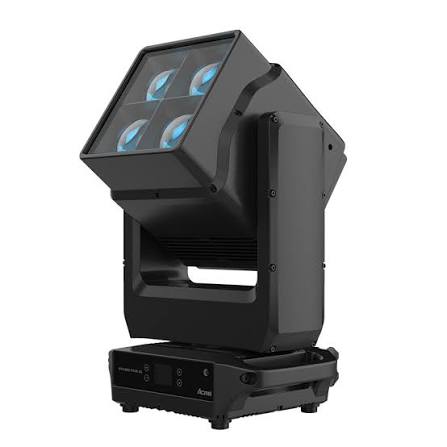

Pulsar Plus S2 (CM S2 IP)
ACME
#162Short Name: PULSARPLUSS2
“IP66 upgraded evolution of the PULSAR S2: dual-head design with front 4x150W RGBL LEDs for beam/wash (3.5-24deg zoom, kaleidoscope effect), rear combines 16x10W CW beam LEDs, 160x3W CW strobe LEDs and 192x0.5W RGB pixel LEDs. Infinite pan/tilt, variable CTO 2500-8000K, patented electronic frost on pixel and beam sections.”
Physical
Weight20.5 kg
Length310 mm
Width228 mm
Height496 mm
IP RatingIP66
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.1200 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5
Optical & Wheels
SourceWash / PAR
EmittersRGBW + CW Strobe (4x 150W RGBL + 16x 10W CW + 160x 3W CW + 192x 0.5W RGB)
Lumens28,500 lm
CRI---
Zoom Min5°
Zoom Max30°
Color Wheels2 [34 | 34]
Gobo Wheels---
Movement
Pan Range540°
Tilt Range450°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Mode 143 ch
Mode 2153 ch
Mode 3163 ch
Mode 4195 ch
