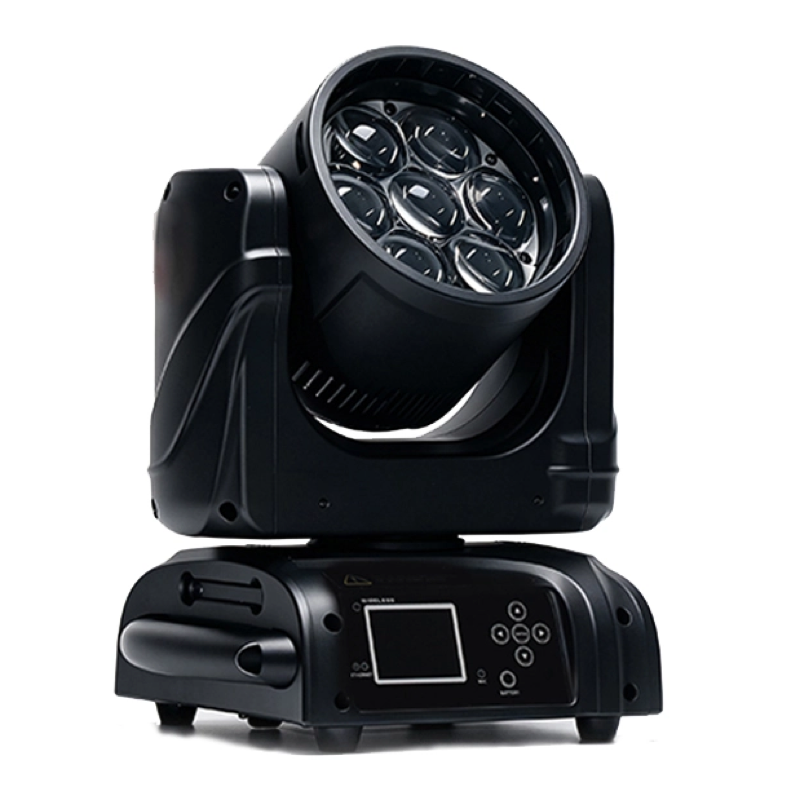

A74Z
Ablelite
#15Short Name: A74Z
“A74Z is a powerhouse Zoom Wash Moving Head designed to transform any event or production. Boasting 7 x OSRAM 40W 4-in-1 LEDs, it delivers a stunning spectrum of colours and precise illumination. With a versatile beam angle ranging from 6° to 50°, you can effortlessly tailor the coverage to suit any venue or stage.”
Physical
Weight7.4 kg
Length245 mm
Width286 mm
Height372 mm
IP Rating---
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.280 W
Voltage---
Frequency---
ConnectorPowerconTRUE1 | XLR5 | RJ45
Optical & Wheels
SourceWash
EmittersRed Led | Green Led | Blue Led | White Led
Lumens2,320 lm
CRI69.4
Zoom Min6°
Zoom Max50°
Color Wheels---
Gobo Wheels---
Movement
Pan Range540°
Tilt Range233°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Basic_18ch15 ch
Basic+Section_18ch+8ch25 ch
Basic+Pixel_18ch+28ch20 ch
Standard_25ch17 ch
Standard+Section_25ch+8ch27 ch
Standard+Pixel_25ch+28ch22 ch
Extended_37ch29 ch
Extended+Section_37ch+8Ch39 ch
Extended+Pixel_37ch+28Ch34 ch
Basic2_23ch15 ch
Basic2+Section_23ch+8ch25 ch
Basic2+Pixel_23ch+28ch20 ch
