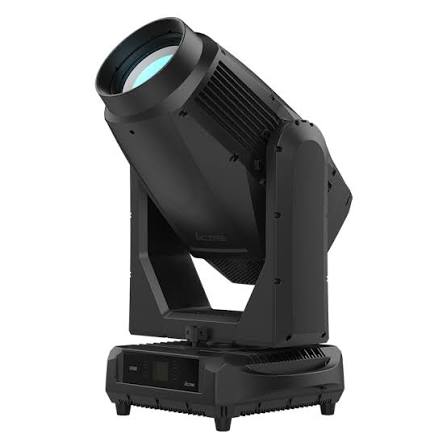

Lyra (XA 1000 BSWF IP)
ACME
#135Short Name: LYRA
“IP66 outdoor hybrid LED moving light with a 1000W white LED engine, CMY + CTO color mixing, fixed color wheel, static and rotating gobo wheels, bidirectional animation wheel, dual prisms, dual frost filters and a framing module with 4 rotating shutter blades.”
Physical
Weight42 kg
Length465 mm
Width352 mm
Height778 mm
IP RatingIP66
Temp Low0°C
Temp High40°C
Electrical
Power Consump.1190 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR3, XLR5, RJ45
Optical & Wheels
SourceProfile
EmittersCMY + Linear CTO + Color Wheel (6 colors + open)
Lumens35,000 lm
CRI70
Zoom Min6°
Zoom Max50°
Color Wheels1 [5 colors + 1 high-CRI filter, plus open]
Gobo Wheels2 [1 rotating (7 gobos), 1 static (9 gobos)]
Movement
Pan Range540°
Tilt Range260°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard34 ch
Extended54 ch
