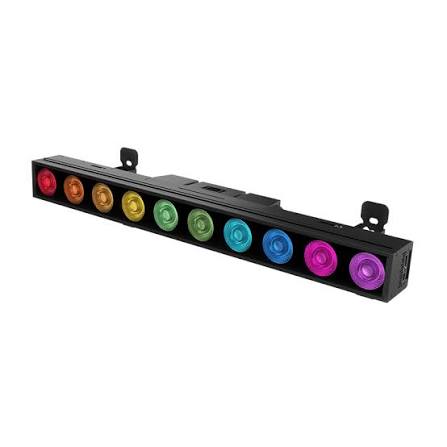

Lineforce 10 IP (CYC 10 IP)
ACME
#134Short Name: LINEFORCE10IP
“IP66 lightweight multi-spectral linear wash light with 10x120W RGBWAC+UV LEDs, 14-57deg beam angle, patented 4-zone electronic frost system, tungsten emulation, individual pixel control, quick-release interlocking connectors for building larger arrays.”
Physical
Weight13.6 kg
Length1000 mm
Width150 mm
Height210 mm
IP RatingIP66
Temp Low-20°C
Temp High45°C
Electrical
Power Consump.625 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBACL (Red, Green, Blue, Amber, Cyan, Lime Asymmetric Cyc)
Lumens21,200 lm
CRI90
Zoom Min60°
Zoom Max90°
Color Wheels1 [51]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
8 Channel8 ch
14 Channel14 ch
60 Channel60 ch
