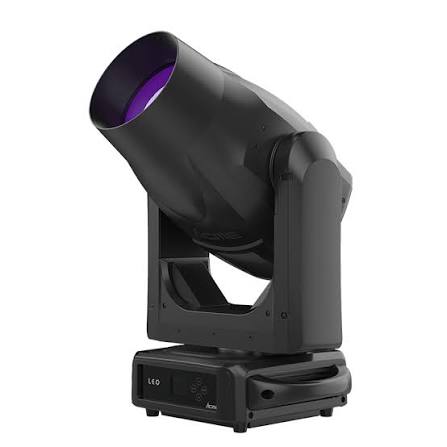

Leo (XP-550 BSW)
ACME
#130Short Name: LEO
“ACMELEO (XP-550 BSW) 550W”
Physical
Weight30.5 kg
Length402 mm
Width308 mm
Height725 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.765 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceHybrid BSW
EmittersCMY + Linear CTO + Color Wheel (14 colors + open)
Lumens18,600 lm
CRI80
Zoom Min2°
Zoom Max34°
Color Wheels1 [3 | 15]
Gobo Wheels2 [19 | 8 | 3]
Movement
Pan Range540°
Tilt Range270°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Short18 ch
Standard19 ch
Basic25 ch
Extended26 ch
