A120B
Ablelite
#11Short Name: A120B

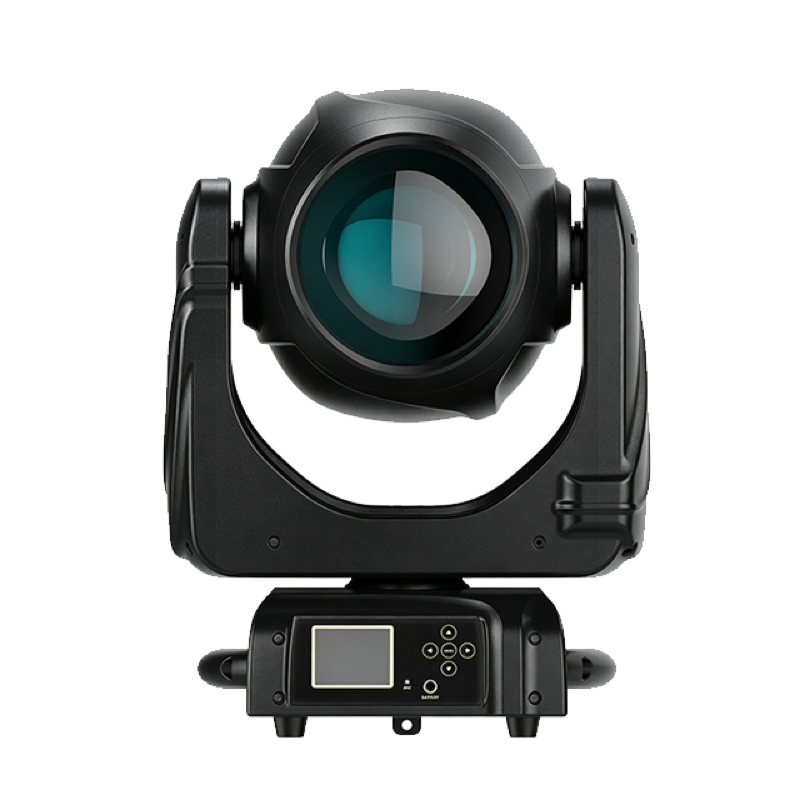

“A120B is a 120W LED moving head fixture, with a luminous flux of 150000@5m , weighing only 12.75KG. Features of the A120B include a color wheel (14 colors), 17 fixed gobos, and 6f linear prism & rotating 8F prisms(they can overlap?, supports RDM, optional network and wireless control, supports DMX software upgrades.”
Physical
Weight12.75 kg
Length286 mm
Width245 mm
Height104 mm
IP Rating---
Temp Low-10°C
Temp High45°C
Electrical
Power Consump.180 W
Voltage100V - 240V
Frequency---
Connector---
Optical & Wheels
SourceBeam
EmittersWhite Led
Lumens10,000 lm
CRI100
Zoom Min1°
Zoom Max1°
Color Wheels4 [15 | 2 | 2 | 2]
Gobo Wheels1 [18]
Movement
Pan Range540°
Tilt Range265°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Standard12 ch
Extended12 ch
