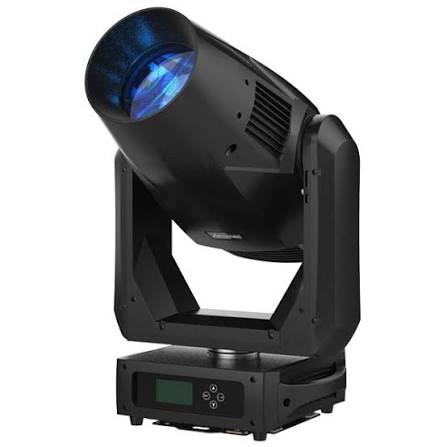

Geist Framing (XA-500 Framing)
ACME
#107Short Name: GEISTFRAMING
“ACME XA-500 Framing”
Physical
Weight24.5 kg
Length364 mm
Width250 mm
Height658 mm
IP RatingIP20
Temp Low0°C
Temp High40°C
Electrical
Power Consump.670 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5, RJ45
Optical & Wheels
SourceProfile
EmittersCMY + Linear CTO + Color Wheel (5 colors + CRI + open)
Lumens20,000 lm
CRI70
Zoom Min6.5°
Zoom Max54°
Color Wheels1 [7 | 9 | 3]
Gobo Wheels2 [7 | 9]
Movement
Pan Range540°
Tilt Range260°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Short25 ch
Standard29 ch
Extended34 ch
