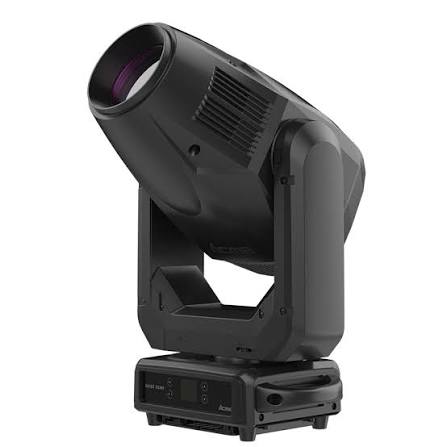

Geist BSWF (XA-500 BSWF)
ACME
#106Short Name: GEISTBSWF
“Compact 450W LED hybrid moving light (beam/spot/wash), CMY+CTO color mixing, 5-color wheel with high-CRI filter, static and rotating gobo wheels, 4-blade framing, frost filter and 4-facet prism.”
Physical
Weight24.5 kg
Length364 mm
Width250 mm
Height658 mm
IP RatingIP20
Temp Low0°C
Temp High45°C
Electrical
Power Consump.670 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5, RJ45
Optical & Wheels
SourceHybrid BSW
EmittersCMY + Linear CTO + Color Wheel (5 colors + CRI + open)
Lumens20,000 lm
CRI70
Zoom Min6.5°
Zoom Max54°
Color Wheels1 [5 colors + high-CRI filter, plus open]
Gobo Wheels2 [1 rotating (7 gobos), 1 static (8 gobos incl. 2 beam reducers)]
Movement
Pan Range540°
Tilt Range260°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Short25 ch
Standard29 ch
Extended34 ch
