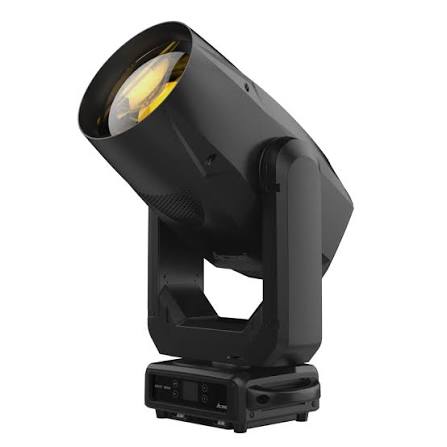

GEIST BEAM (XA 500 BEAM)
ACME
#105Short Name: GEISTBEAM
“500W LED beam moving head with a super-concentrated 3deg beam angle, 230mm frontal lens, 360,000 lux @5m. CMY+CTO mixing, 8-color wheel + diffusion filter, static gobo wheel (10 gobos), rotating gobo wheel (7 gobos), dual combinable prisms (8-facet circular + 6-facet linear), frost filter.”
Physical
Weight28.9 kg
Length350 mm
Width223 mm
Height750 mm
IP RatingIP20
Temp Low0°C
Temp High45°C
Electrical
Power Consump.700 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorpowerCON, XLR3, XLR5
Optical & Wheels
SourceBeam
EmittersColor Wheel Only (14 colors + open)
Lumens13,600 lm
CRI70
Zoom Min3°
Zoom Max3°
Color Wheels1 [8 colors + 1 diffusion filter, plus open]
Gobo Wheels2 [1 static (10 gobos), 1 rotating (7 gobos)]
Movement
Pan Range540°
Tilt Range260°
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
Short17 ch
Standard24 ch
