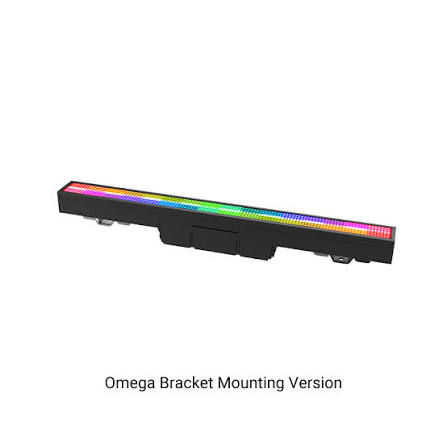

Pixel Line IP (BAR 1000 IP)
ACME
#102Short Name: PIXELLINEIP
“ACME FLANDINA 22 IP(BAR 22 IP)12*10W”
Physical
Weight6.8 kg
Length998 mm
Width92 mm
Height185 mm
IP RatingIP66
Temp Low-10°C
Temp High40°C
Electrical
Power Consump.365 W
Voltage100V - 240V
Frequency50Hz - 60Hz
ConnectorTRUE1, XLR5
Optical & Wheels
SourceBar / Batten
EmittersRGBW + CW Strobe (12x 10W RGBW + 108x 3W Cold White Strobe)
Lumens29,688 lm
CRI---
Zoom Min30°
Zoom Max116°
Color Wheels1 [34]
Gobo Wheels---
Movement
Pan Range---
Tilt Range---
Capabilities
PanTiltZoomPrismFrostStrobeIrisFramingAnim. Wheel
DMX Modes
10 Channel10 ch
17 Channel17 ch
21 Channel21 ch
57 Channel57 ch
